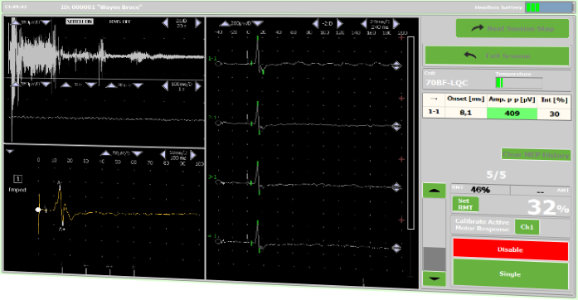

- ∙ Intuitive dashboard interface
- ∙ User management system
- ∙ Integrated patient database
- ∙ EMG integration
- ∙ Preset protocols
- ∙ Patient report generator
- ∙ MEP study capabilities
The DuoMAG MP-Dual combines two DuoMAG MP units to provide fully programmable monophasic paired-pulse stimulation through a single stimulating coil. By independently controlling the pulse intervals and power level of each DuoMAG MP, it is possible to provide precise sub- and supra-threshold conditioning and test pulses. The inter-stimulus interval (ISI) of the two pulses is adjustable with the following methods: The first is via the supplied touch-screen programmable interface, and the second is via external triggering of two TTL inputs, one for each stimulator, offering complete user flexibility of the ISI setting. It is also possible to connect two individual coils for additional uses including interhemispheric stimulation. DuoMAG MP-Dual allows users to combine the two stimulator pulses into a single pulse, providing a pulse amplitude that equates to 134% of a single DuoMAG MP output. The system is ideal for both clinical and research applications.
DEYMED coils have built-in controls for stimulation and intensity settings. This allows the user full control without needing to divert attention to external panels or triggers. This also allows the TMS system to be used by a single operator.
Shape
Handle
Cooling
Placebo
Compatibility
Butterfly T-shaped Coil 70 mm with suppressed head muscle activation
Typical use:
TBS protocols.
Butterfly Coil 60 mm with controls and liquid cooling
Typical use:
Focused cortical stimulation, mainly for rTMS.
Butterfly Coil 70 mm with controls and liquid cooling
Typical use:
Focused cortical stimulation, mainly for rTMS.
ui.duomagMp.compCoil.placebo70bflq.text
Typical use:
For blinded studies. Intended for research purposes only.
Butterfly Overlapping Coil 70 mm
Typical use:
Focused long-term cortical stimulation, mainly for rTMS. More comfort for the patient due to coil design.
ui.duomagMp.compCoil.placebo70bfxlq.text
Typical use:
For blinded studies. Intended for research purposes only.
Butterfly V-Shaped Coil 90 mm with 120° angled surface and liquid cooling
Typical use:
Deep stimulation.
Butterfly Coil 70 mm with controls and cooling fans
Typical use:
Focused long-term cortical stimulation, mainly for rTMS.
ui.duomagMp.compCoil.placebo70bfc.text
Typical use:
For blinded studies. Intended for research purposes only.
Butterfly Coil 70 mm with controls
Typical use:
Focused cortical stimulation, mainly for rTMS.
Butterfly Coil 70 mm with controls
Typical use:
For blinded studies. Intended for research purposes only.
Butterfly Coil 50 mm with controls
Typical use:
Very focused cortical stimulation, mainly for rTMS. Paired-pulse stimulation with twin coil configuration due to smaller size.
Butterfly V-Shaped Coil 120 mm with controls
Typical use:
Deep cortical stimulation.
Butterfly Coil DuoMAG 50 mm T-shaped
Typical use:
Very focused cortical stimulation, mainly for rTMS. Paired-pulse stimulation with twin coil configuration due to smaller size.
Butterfly T-shaped Coil 30 mm
Typical use:
Precisely focused stimulation.
Round Coil 100 mm with controls
Typical use:
Stimulation of peripheral nerves or cortical stimulation.
Round Coil 125 mm with controls
Typical use:
Spinal stimulation.
The DuoMAG MP-EEG is a cutting-edge monophasic stimulator specifically designed to optimize the acquisition of EEG signals as soon as possible after stimulation, while effectively minimizing signal noise.
What makes the DuoMAG MP-EEG stand out is its faster decay of the stimulation pulse. This patented innovation enables the recording of EEG signals with significantly reduced artifact noise compared to conventional monophasic stimulators, ensuring higher signal quality and greater accuracy.
Moreover, the DuoMAG MP-EEG is fully compatible with the configurations of the standard DuoMAG MP, offering both flexibility and enhanced performance to meet the rigorous demands of EEG-based research applications.
The MagCart configuration is compact and highly mobile, ensuring easy manoeuvrability. An optional articulating arm allows the coils to be quickly secured after positioning. If the coils are liquid-cooled, the cooling unit can be conveniently placed on the cart as well. The system can also be configured with a preinstalled laptop or touch-screen interface, coil arm, and EMG headbox.
The DuoMAG MP-Dual can be placed on a desktop or elsewhere in a compact space.
Not compatible with coil cooling system.
Please note that this product may not be approved by regulatory authorities in your country/region. For more information, please consult with us or our distributor.
*For users in the USA: Product is considered an investigational device. Limited by Federal (or United States) Law only to investigational use.
We supply a range of accessories for our systems...
Download the DEYMED Accessories catalogue in PDF format from the link on the right.
Contact us if you are interested in any listed accessories.

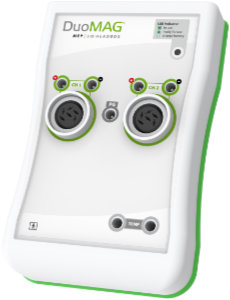

TMS compatible TruTrace EMG 2ch Headbox, includes two 5-pin DIN connectors (with pins for patient ground and shielding) or individual active and reference 1.5 mm touch-proof connectors.

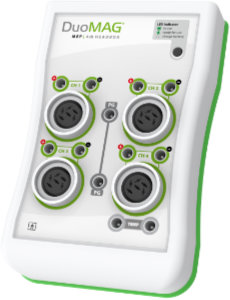

TMS compatible TruTrace EMG 4ch Headbox, includes four 5-pin DIN connectors (with pins for patient ground and shielding) or individual active and reference 1.5 mm touch-proof connectors.
Advanced liquid coil cooling system ensures efficient performance with minimal noise.
Integration of a coil arm holder for the MagCart.
Shelf mounted on top of the stimulator for laptop placement.
Programmable pedal footswitch.
Electrically adjustable chair.
Optionally side support for headrest.
| Product Specification | DuoMAG MP-Dual | DuoMAG MP-EEG-Dual | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pulse Shape | Monophasic | Monophasic | ||||||||||||
| Pulse Mode | Single / Pair-pulse/ Combine Pulse* | Single / Pair-pulse/ Combine Pulse* | ||||||||||||
| Maximum Repetition Rate |
|
|
||||||||||||
| Inter-Stimulus Interval (ISI) | 0 or 1 – 1000 ms | 0 or 1 – 1000 ms | ||||||||||||
| Coil Compatibility | DEYMED Coils | DEYMED Coils | ||||||||||||
| Main Voltage | 2x (100-240Vac 50/60 Hz) | 2x (100-240Vac 50/60 Hz) | ||||||||||||
| Synchronization | TTL In/Out and/or USB | TTL In/Out and/or USB | ||||||||||||
| Communication | USB Full Control, Control on Coil | USB Full Control, Control on Coil | ||||||||||||
| Intended | Clinical, Research | Research |
* Combine - The DuoMAG MP-Dual combines two stimulator pulses into one, achieving a pulse amplitude of 134% of a single DuoMAG MP output.
